Order Request – Metal Detector

Fill out our online Metal Detector Order Request form. Once submitted, a Connexus representative will review the order details and then contact you.

Or if you prefer, you can download the Metal Detector Order Sheet PDF, fill out the information and then email it to us.

Customer Information

Customer(Required)

Email(Required)

Phone(Required)

Metal Detector Specifications

What kind of equipment will the metal detector be protecting?

What's the smallest size metal to be detected?

Type of metal concerns?

Type of material processed

Power voltage available:

115 vac

220 vac

*Other

*If power voltage is other than 115 or 220 vac, please specify:

Power Phase

Single

3 Phase

Power Frequency

50 Hz

60 Hz

Is power regulated?

yes

no

Conveyor Support Frame

Steel

Wood

*Other

*If conveyor support frame is other than steel or wood, please specify:

Where will the metal detector be installed?

Search Coil

Inside

Outside

Control Instrument

Inside

Outside

Vibrating & Belt Conveyor Applications

Conveyor Inside – Bottom Width

Conveyor Inside – Top Width

Conveyor Inside – Height (Vertical)

Normal Load Depth

Maximum Load Depth

Conveyor Speed (FPM)

Is the conveyor balanced?

Yes

No

Fiberglass trough existing?

*Yes

No

*If fiberglass trough exists, specify length:

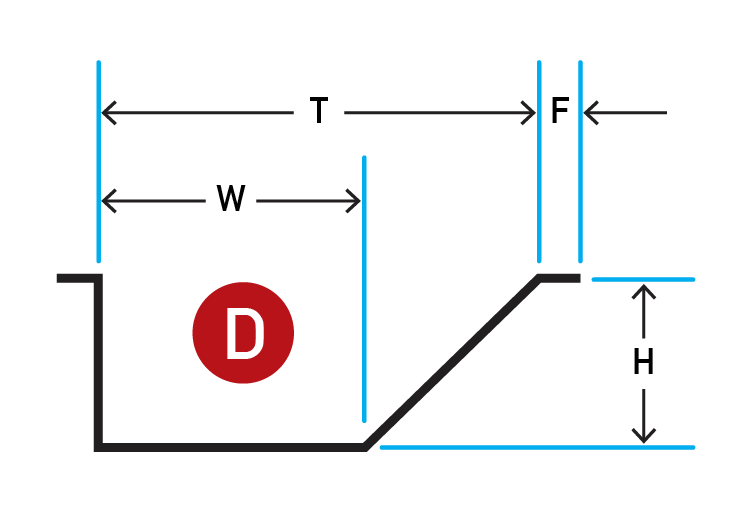

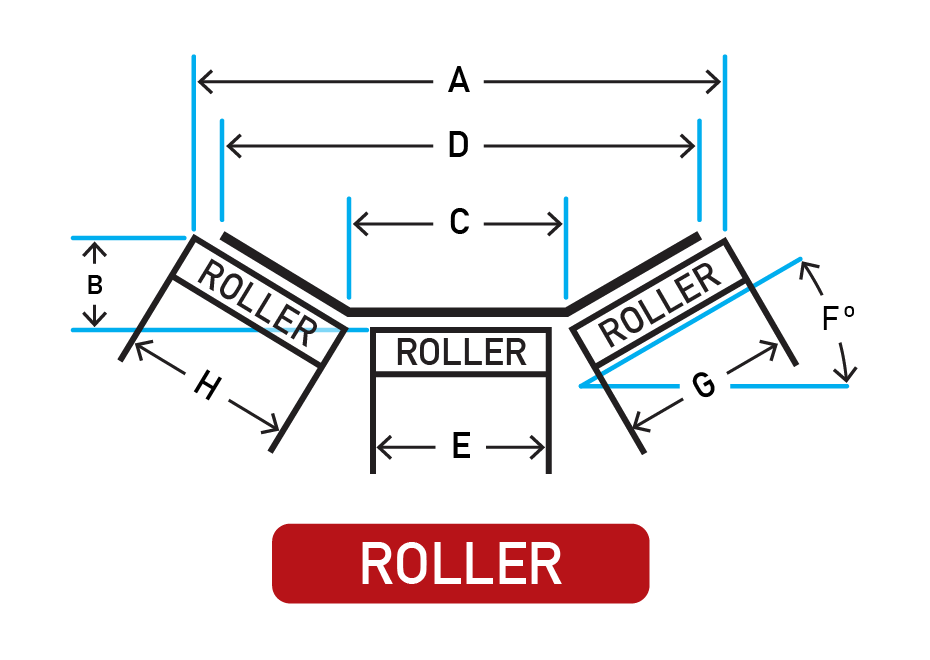

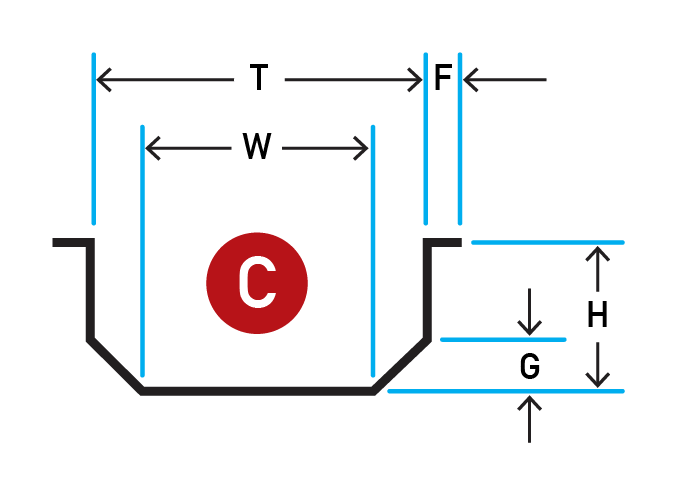

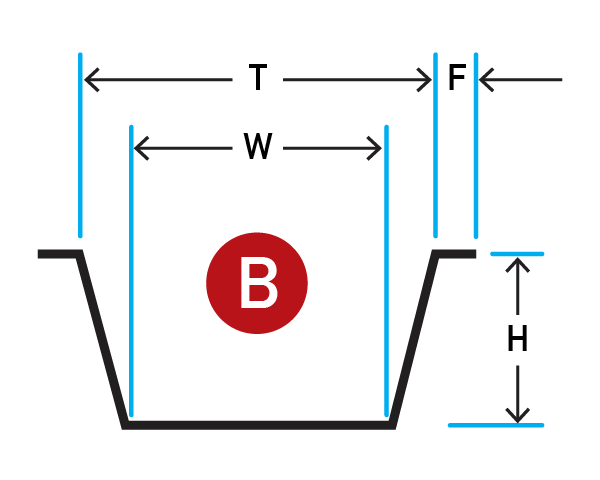

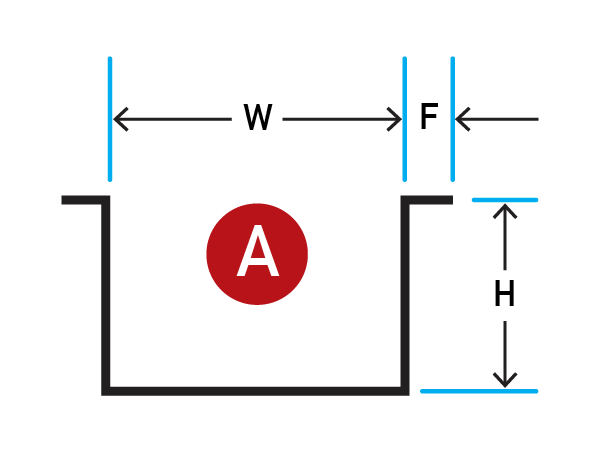

Trough Shapes

Use the diagram below to:

• Determine the type of trough you have, which are labelled as either ‘A’, ‘B’, ‘C’, ‘D’ or ‘Roller’.
• Provide the requested inside measurements for the trough you have, also labelled by letter.

Type of Trough

A

B

C

D

Roller

Inches or millimeters for the following trough inside measurements?

inches

mm

'W' Inside Measurement

'H' Inside Measurement

'T' Inside Measurement

'G' Inside Measurement

Form Consent(Required)

I agree to the Privacy Policy and consent to being contacted by Connexus Industries

CAPTCHA

Note: After clicking the Submit button, please be patient while the form submits.
